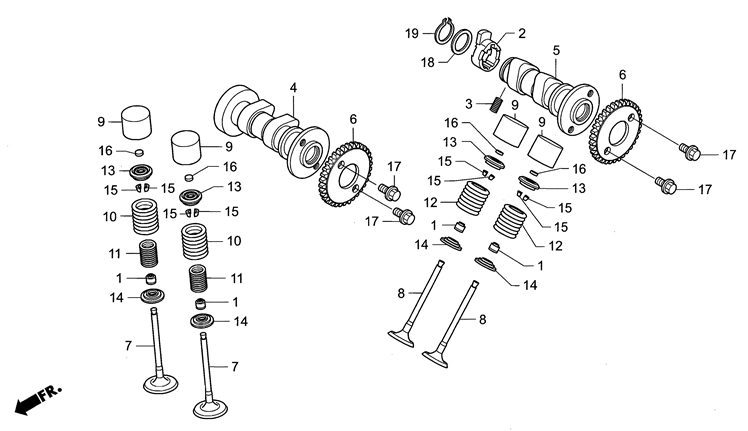

You are here: Home > Sand box - products by bike > Honda specific parts > NSF250R > E-2 Camshaft/Valve
Ref Part Number Description Qty Req Price Buy
1 12208-NX7-003 SEAL, VALVE STEM 4 4.71
2 14105-NX7-000 PLATE, DECOMPRESSION CAM 1 140.00
3 14106-MBN-670 SPG, DECOMPRESSION 1 2.86
4 14110-NX7-000 CAM SHAFT COMP, INTAKE 1 221.43
5 14210-NX7-000 CAM SHAFT COMP, EXHAUST 1 254.29
6 14321-NX7-010 SPROCKET, CAM SHAFT 2 52.86
7 14711-NX7-000 VALVE, INLET 2 43.00
8 14721-NX7-000 VALVE, EXHAUST 2 80.14
9 14731-NX7-000 LIFTER, VALVE 4 115.71
10 14751-NX7-000 SPRING, INTAKE VALVE OUTER 2 21.43
11 14752-NX7-000 SPRING, INTAKE VALVE INNER 2 20.00
12 14761-NX7-000 SPRING, EXHAUST VALVE 2 21.43
13 14771-NX7-000 RETAINER, VALVE SPRING 4 9.29
14 14775-NX7-000 SEAT, VALVE SPRING 4 11.43
15 14781-ML0-720 COTTER, VALVE 8 2.71
16 14901-KT7-013 SHIM, TAPPET 1.20 (4) 5.43
14902-KT7-013 SHIM, TAPPET 1.225 (4) 5.43
14903-KT7-013 SHIM, TAPPET 1.25 (4) 5.43
14904-KT7-013 SHIM, TAPPET 1.275 (4) 5.43
14905-KT7-013 SHIM, TAPPET 1.30 (4) 5.43
14906-KT7-013 SHIM, TAPPET 1.325 (4) 5.43
14907-KT7-013 SHIM, TAPPET 1.55 (4) 5.43
14908-KT7-013 SHIM, TAPPET 1.375 (4) 5.43
14909-KT7-013 SHIM, TAPPET 1.40 (4) 5.43
14910-KT7-013 SHIM, TAPPET 1.425 (4) 5.43
14911-KT7-013 SHIM, TAPPET 1.45 (4) 5.43
14912-KT7-013 SHIM, TAPPET 1.475 (4) 5.43
14913-KT7-013 SHIM, TAPPET 1.50 (4) 5.43
14914-KT7-013 SHIM, TAPPET 1.525 (4) 5.43
14915-KT7-013 SHIM, TAPPET 1.55 (4) 5.43
14916-KT7-013 SHIM, TAPPET 1.575 (4) 5.43
14917-KT7-013 SHIM, TAPPET 1.60 (4) 5.43
14918-KT7-013 SHIM, TAPPET 1.625 (4) 5.43
14919-KT7-013 SHIM, TAPPET 1.65 (4) 5.43
14920-KT7-013 SHIM, TAPPET 1.675 (4) 5.43
14921-KT7-013 SHIM, TAPPET 1.70 (4) 5.43
14922-KT7-013 SHIM, TAPPET 1.725 (4) 5.43
14923-KT7-013 SHIM, TAPPET 1.75 (4) 5.43
14924-KT7-013 SHIM, TAPPET 1.775 (4) 5.43
14925-KT7-013 SHIM, TAPPET 1.80 (4) 5.43
14926-KT7-013 SHIM, TAPPET 1.825 (4) 5.43
14927-KT7-013 SHIM, TAPPET 1.85 (4) 5.43
14928-KT7-013 SHIM, TAPPET 1.875 (4) 5.43
14929-KT7-013 SHIM, TAPPET 1.900 (4) 5.43
14930-KT7-013 SHIM, TAPPET 1.925 (4) 5.43
14931-KT7-013 SHIM, TAPPET 1.950 (4) 5.43
14932-KT7-013 SHIM, TAPPET 1.975 (4) 5.43
14933-KT7-013 SHIM, TAPPET 2.00 (4) 5.43
14934-KT7-013 SHIM, TAPPET 2.025 (4) 5.43
14935-KT7-013 SHIM, TAPPET 2.05 (4) 5.43
14936-KT7-013 SHIM, TAPPET 2.075 (4) 5.43
14937-KT7-013 SHIM, TAPPET 2.10 (4) 5.43
14938-KT7-013 SHIM, TAPPET 2.125 (4) 5.43
14939-KT7-013 SHIM, TAPPET 2.15 (4) 5.43
14940-KT7-013 SHIM, TAPPET 2.175 (4) 5.43
14941-KT7-013 SHIM, TAPPET 2.20 (4) 5.43
14942-KT7-013 SHIM, TAPPET 2.225 (4) 5.43
14943-KT7-013 SHIM, TAPPET 2.25 (4) 5.43
14944-KT7-013 SHIM, TAPPET 2.275 (4) 5.43
14945-KT7-013 SHIM, TAPPET 2.30 (4) 5.43
14946-KT7-013 SHIM, TAPPET 2.325 (4) 5.43
14947-KT7-013 SHIM, TAPPET 2.35 (4) 5.43
14948-KT7-013 SHIM, TAPPET 2.375 (4) 5.43
14949-KT7-013 SHIM, TAPPET 2.40 (4) 5.43
14950-KT7-013 SHIM, TAPPET 2.425 (4) 5.43
14951-KT7-013 SHIM, TAPPET 2.45 (4) 5.43
14952-KT7-013 SHIM, TAPPET 2.475 (4) 5.43
14953-KT7-013 SHIM, TAPPET 2.50 (4) 5.43
14954-KT7-013 SHIM, TAPPET 2.525 (4) 5.43
14955-KT7-013 SHIM, TAPPET 2.55 (4) 5.43
14956-KT7-013 SHIM, TAPPET 2.575 (4) 5.43
14957-KT7-013 SHIM, TAPPET 2.60 (4) 5.43
14958-KT7-013 SHIM, TAPPET 2.625 (4) 5.43
14959-KT7-013 SHIM, TAPPET 2.65 (4) 5.43
14960-KT7-013 SHIM, TAPPET 2.675 (4) 5.43
14961-KT7-013 SHIM, TAPPET 2.70 (4) 5.43
14962-KT7-013 SHIM, TAPPET 2.725 (4) 5.43
14963-KT7-013 SHIM, TAPPET 2.75 (4) 5.43
14964-KT7-013 SHIM, TAPPET 2.775 (4) 5.43
14965-KT7-013 SHIM, TAPPET 2.80 (4) 5.43
14966-KT7-013 SHIM, TAPPET 2.825 (4) 5.43
14967-KT7-013 SHIM, TAPPET 2.85 (4) 5.43
14968-KT7-013 SHIM, TAPPET 2.875 (4) 5.43
14969-KT7-013 SHIM, TAPPET 2.90 (4) 5.43
17 90082-NX7-000 BOLT, FLANGE KNOCK (7x9) 4 3.57
18 90404-NX7-000 WASHER (18x23) 1 17.14
19 90601-030-000 CIRCLIP, (18mm) 1 2.07
