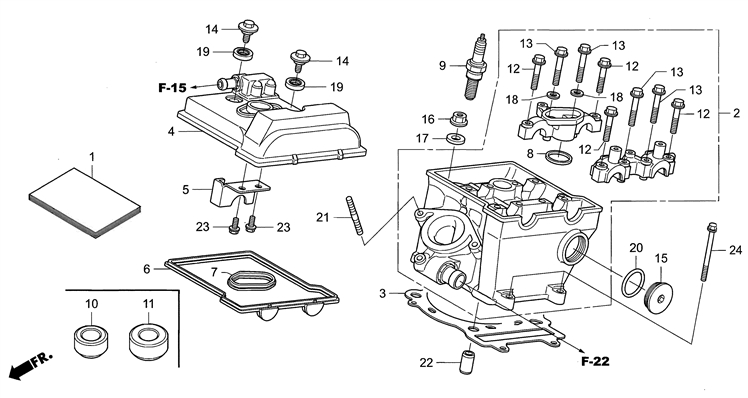

Ref
|
Part Number
|
Description
|
Qty Req
|
Price
|
Buy
|
|
1
|
00X30-NX7-000
|
SET-UP MANUAL / PARTS LIST JAPANESE
|
(1)
|
107.14
|
|
|
|
00X31-NX7-670
|
SET-UP MANUAL / PARTS LIST JAPANESE
|
(1)
|
107.14
|
|
|
|
00X32-NX7-650
|
SET-UP MANUAL / PARTS LIST ENGLISH
|
(1)
|
107.14
|
|
|
2
|
12010-NX7-000
|
HEAD ASSY, CYLINDER
|
1
|
642.86
|
|
|
3
|
12251-NX7-003
|
GASKET, CYLINDER HEAD
|
1
|
42.86
|
|
|
4
|
12310-NX7-000
|
COVER COMP., CYLINDER HEAD
|
1
|
314.29
|
|
|
5
|
12316-NX7-000
|
PLATE, BREATHER
|
1
|
27.14
|
|
|
6
|
12391-NX7-000
|
GASKET A, CYLINDER HEAD
|
1
|
32.86
|
|
|
7
|
12394-NX7-000
|
GASKET B, CYLINDER HEAD
|
1
|
31.43
|
|
|
8
|
12395-KSE-670
|
GASKET, SPARK PLUG HOLE
|
1
|
3.00
|
|
|
9
|
31910-NX7-003
|
SPARK PLUG R0452A-10
|
1
|
92.86
|
|
|
10
|
89005-NX7-000
|
FLAT CUTTER, INTAKE SEAT
|
(1)
|
158.57
|
|
|
11
|
89006-NX7-000
|
FLAT CUTTER, EXHAUST SEAT
|
(1)
|
148.57
|
|
|
12
|
90011-NX7-000
|
BOLT, FLANGE (6x35)
|
4
|
2.86
|
|
|
13
|
90012-NX7-000
|
BOLT, FLANGE (6x40)
|
4
|
2.86
|
|
|
14
|
90017-MY9-790
|
BOLT, HEAD COVER
|
2
|
2.43
|
|
|
15
|
90087-NX7-000
|
CAP (30mm)
|
1
|
21.43
|
|
|
16
|
90202-NX7-000
|
NUT, FLANGE (9mm)
|
4
|
7.14
|
|
|
17
|
90405-MFL-000
|
WASHER, PLAIN (9mm)
|
4
|
2.29
|
|
|
18
|
90463-ML7-000
|
WASHER, DRAIN PLUG
|
2
|
1.79
|
|
|
19
|
90543-MV9-670
|
RUBBER, MOUNT
|
2
|
2.43
|
|
|
20
|
91356-425-005
|
O-RING (29.7x2.4)
|
1
|
3.36
|
|
|
21
|
92900-06018-0E
|
BOLT, STUD (6x18)
|
3
|
0.71
|
|
|
22
|
94301-12200
|
PIN, DOWEL (12x20)
|
2
|
1.00
|
|
|
23
|
96001-06012-00
|
BOLT, FLANGE SH (6x12)
|
2
|
0.57
|
|
|
24
|
96001-06065-00
|
BOLT, FLANGE SH (6x65)
|
2
|
0.86
|
|
|
|
|
