You are here: Home > Sand box - products by bike > Honda specific parts > 125GP > Honda RS125
Page in work. Please don't select anything on this page yet.

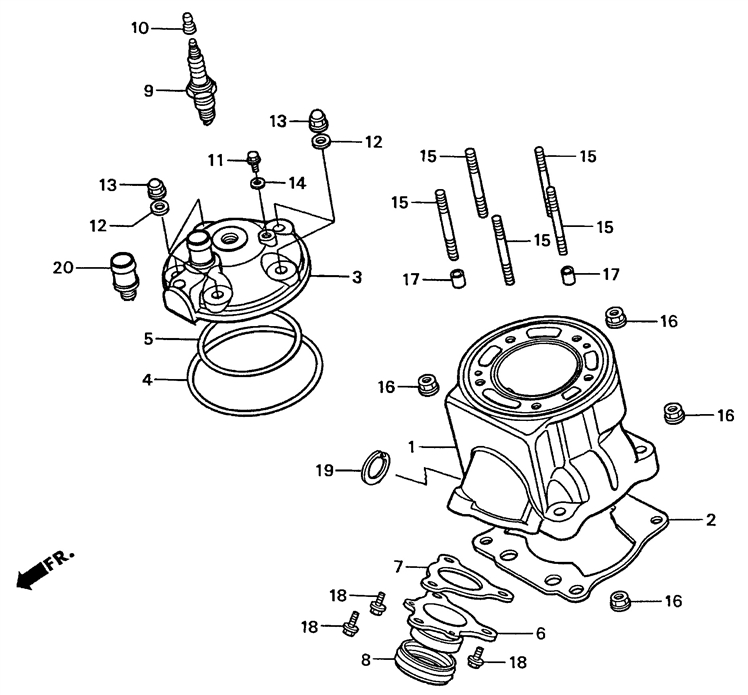

Ref Part Number Description Qty Req Price Buy
12100-NX4-000 CYLINDER COMP [USE 12100-NX4-771] 1 739.90
12194-NX4-003 GASKET, CYLINDER (0.4T) (se) (1) 5.15
12195-NX4-003 GASKET, CYLINDER (0.5T) 1 2.36
12196-NX4-003 GASKET, CYLINDER (0.6T) (1) 2.59
12200-NX4-700 HEAD COMP,CYLINDER (se) 1 0.00
12212-ND5-003 O-RING, CYLINDER HEAD (96x2.4) 1 3.23
12213-ND5-000 O-RING, CYLINDER HEAD (61x1.9) 1 3.21
18220-NX4-000 JOINT COMP, EXHAUST PIPE 1 24.50
18331-NF4-780 GASKET, EXHAUST JOINT 1 2.97
18359-KS7-000 SEAL, EXHAUST PIPE 1 6.45
R7376-10 NGK SPARK PLUG, Heat Range 10, 14mm X 19mm, Fine Wire Iridium Center and Platinum Angled Ground Electrodes, 0.61mm Gap, 20.6mm Hex Size, Gasket Seat, Resistor, Solid Terminal Nut (1) 31.09
R6179A-105P NGK SPARK PLUG, Heat Range 10.5, 14mm X 19mm, Fine Wire Platinum Tipped Center and Angled Ground Electrodes, 0.61mm Gap, 20.6mm Hex Size, Gasket Seat, Resistor, Solid Terminal Nut, Reduced Height (Requires 2mm Trimmed From Spark Plug Cap) 1 41.52
R6179A-11P NGK SPARK PLUG, Heat Range 11, 14mm X 19mm, Fine Wire Platinum Tipped Center and Angled Ground Electrodes, 0.61mm Gap, 20.6mm Hex Size, Gasket Seat, Resistor, Solid Terminal Nut, Reduced Height (Requires 2mm Trimmed From Spark Plug Cap) (1) 41.52
31910-NF4-000 NUT SPARK PLUG (se) (1) 2.71
90037-NX5-000 BOLT, WATER CHECK (6x10) [USE 96001-06010-07] 1 0.45
90441-422-000 WASHER, SEALING 8mm 5 4.12
90443-107-000 NUT, CAP (8mm) 5 2.55
90543-273-000 PACKING, FRONT FORK DRAIN 1 1.60
92900-08032-0E BOLT, STUD (8x32) 5 0.75
94050-08000 NUT, FLANGE (8mm) 4 0.43
94301-06100 PIN, DOWEL (6x10) 2 0.78
96001-06014-07 BOLT, FLANGE SH (6x14) BK 3 0.53
94520-14000 CIRCLIP, INTERNAL (14mm) 1 0.36
12202-KA4-700 JOINT, WATER PIPE 1 25.65
